Ningbo Feiyu Bearing Co.,Ltd

China High Quality Ball Bearing Manufacturer

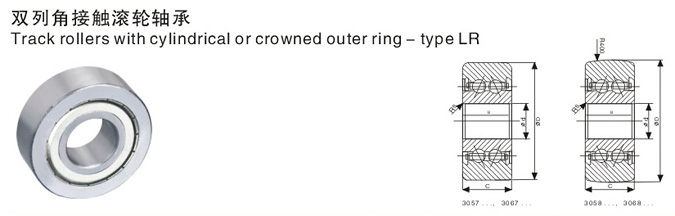

DOUBLE ROW Angular Contact Ball Bearing

Product Name:

DOUBLE ROW Angular Contact Ball Bearing

Number :

305701

Product Description:

We are a professional manufacturer for the angular contact ball bearing,we can provide the customer best price with best quality.

Main dimensions(mm)			Bearing the code	Basic static load rating	Basic static load rating	Reference quality
d	D	B	Bearing the code	Cr(N)	Cor(N)	Kg
10	32	14	305700C-2Z	6800	4050	0.07
10	32	14	305800C-2Z	6800	4050	0.07
12	35	15.9	305701C-2Z	8600	5100	0.08
12	35	15.9	305801C-2Z	8600	5100	0.08
15	40	15.9	305702C-2Z	9800	6200	0.11
	40	15.9	305802C-2Z	9800	6200	0.11
	47	19	306702C-2Z	14600	9200	0.15
	47	19	306802C-2Z	14600	9200	0.15
17	47	17.5	305703C-2Z	12600	8200	0.17
	47	17.5	305803C-2Z	12600	8200	0.17
	52	22.2	306703C-2Z	17200	11100	0.21
	52	22.2	306803C-2Z	17200	11100	0.21
20	52	20.6	305704C-2Z	15800	10500	0.23
	52	20.6	305804C-2Z	15800	10500	0.23
	62	22.2	306704C-2Z	21100	14500	0.34
	62	22.2	306804C-2Z	21100	14500	0.34
25	62	20.6	305705C-2Z	18500	13000	0.34
	62	20.6	305805C-2Z	18500	13000	0.34
	72	25.4	306705C-2Z	27500	19500	0.5
	72	25.4	306805C-2Z	27500	19500	0.5
30	72	23.8	305706C-2Z	24600	21400	0.51
	72	23.8	305806C-2Z	24600	21400	0.51
	80	30.2	306706C-2Z	36500	26500	0.67
	80	30.2	306806C-2Z	36500	26500	0.67
35	80	27	305707C-2Z	30500	22400	0.66
	80	27	305807C-2Z	30500	22400	0.66
	90	34.9	306707C-2Z	44500	33000	0.97
	90	34.9	306807C-2Z	44500	33000	0.97
40	100	36.5	306708C-2Z	56000	42000	1.2
40	100	36.5	306808C-2Z	56000	42000	1.2
