Ningbo Feiyu Bearing Co.,Ltd

China High Quality Ball Bearing Manufacturer

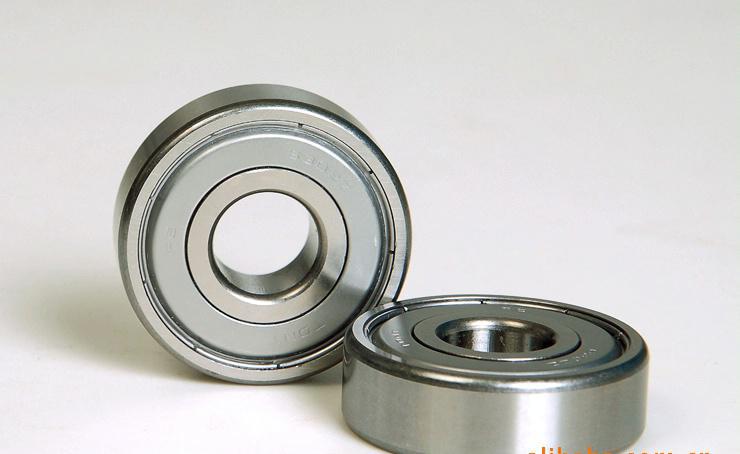

CHINA BALL BEARING 6301ZZ

Product Name:

CHINA BALL BEARING 6301ZZ

Number :

6301 ZZ

Product Description:

FEIYU BEARING is a professional China ball bearing 6301 2RS factory,We can produce from ABEC1 Z1V1 to ABEC7 Z4V4 quality rate,and this time we can provide very competitive price.

Bearing No.	Bore		O.D		Width		Load Rating（KN）		Ball Complement		Maxronout Speed		Weight(kg)
	d		D	B	B		Dynamic	Static	No.	Size	Grease	Oil
	mm	in	mm	in	mm	in	Cr	Cor	No.	mm	r/mm	r/mm
6300	10	0.3937	35	1.3779	11	0.4331	8.20	3.50	6	7.144	23000	27000	0.053
6301	12	0.4724	37	1.4567	12	0.4724	9.70	4.20	6	7.938	20000	24000	0.060
6302	15	0.5906	42	1.6535	13	0.5118	11.40	5.45	7	7.938	17000	21000	0.082
6303	17	0.6693	47	1.8504	14	0.5512	13.50	6.55	7	8.731	16000	19000	0.120
6304	20	0.7874	52	2.0472	15	0.5906	15.90	7.90	7	9.525	14000	17000	0.140
6305	25	0.9843	62	2.4409	17	0.6693	21.20	10.90	7	11.500	12000	14000	0.230
6306	30	1.1811	72	2.8346	19	0.748	26.70	15.00	8	12.000	10000	12000	0.350
6307	35	1.3779	80	3.1496	21	0.8268	33.50	19.10	8	13.494	8800	10000	0.460
6308	40	1.5748	90	3.5433	23	0.9055	40.50	24.00	8	15.081	7800	9200	0.630
6309	45	1.7716	100	3.937	25	0.9843	53.00	32.00	8	17.462	7000	8200	0.830
6310	50	1.965	110	4.3307	27	1.063	62.00	38.50	8	19.05	6400	7500	1.050
