Ningbo Feiyu Bearing Co.,Ltd

China High Quality Ball Bearing Manufacturer

China special Ball bearing

Product Name:

China special Ball bearing

Number :

China Special Ball Bearing series

Product Description:

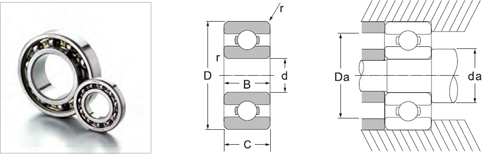

Basic Bearing No.	Nominal Bearing Dimensions								Preferred Shoulder Diameters
	d		D		B,C				r (min)		da (min)		da (max)		Da (max)
	d		D		Open		shielded sealed		r (min)		da (min)		da (max)		Da (max)
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
1602	6.350	0.2500	17.463	0.6875	6.35	0.1200	...	...	0.30	0.120	8.2	0.323	9.1	0.358	15.6	0.614
99502H	15.875	0.6250	34.925	1.3750	11	0.4331	...	...	0.60	0.024	20.0	0.787	...	...	0.2	1.189
6201-1/2	12.7	0.5000	32	1.2598	10	0.3937	...	...	0.60	0.024	15.1	0.595	17.0	0.670	27.0	1.063
6202-5/8	15.875	0.6250	35	1.3780	11	0.4331	...	...	0.60	0.024	18.5	0.730	19.0	0.749	30.0	1.181
6202-16	16	0.6299	35	1.3780	11	0.4331	...	...	0.60	0.024	18.8	0.740	19.0	0.749	30.0	1.181
6203-5/8	15.875	0.6250	40	1.5748	12	0.4724	...	...	0.60	0.024	19.1	0.750	23.5	0.926	35.1	1.380
98205	25	0.9843	52	2.0470	9	0.3543	...	...	1.00	0.039	28.2	1.110	...	...	8.8	1.921
SC205	25	0.9843	52	2.0470	14	0.5512	...	...	1.00	0.039	30.6	1.205	...	...	6.4	1.827
SC0563	25	0.9843	62	2.4409	12	0.4704	...	...	1.10	0.043	32.0	1.260	...	...	5.0	2.165
62/22	22	0.8661	50	1.9685	14	0.5512	...	...	1.00	0.039	27.0	1.063	29.5	1.161	45.0	1.772
63/22	22	0.8661	56	2.2047	16	0.6299	...	...	1.10	0.043	28.5	1.122	30.5	1.201	49.5	1.949
63/22A	22	0.8661	56	2.2047	15	0.5906	...	...	1.10	0.043	28.5	1.122	30.5	1.201	49.5	1.949
63/28	28	1.1024	68	2.6772	18	0.7087	...	...	1.10	0.043	35.0	1.378	38.5	1.516	1.0	2.402
63/28A	28	1.1024	68	2.6772	17	0.6693	...	...	1.10	0.043	35.0	1.378	38.5	1.516	1.0	2.402
28BCS15	28	1.1024	72	2.8346	18	0.7087	...	...	1.10	0.043	35.0	1.378	...	...	64.4	2.535
B15-70	15	0.5906	32	1.2598	11	0.4330	...	...	0.3	0.012	17.0	0.669	19.0	0.748	30.0	1.181
B14-42	14	0.5510	42	1.6535	13	0.5118	...	...	1.0	0.039	19.8	0.781	23.0	0.906	37.0	1.457
402082	30	1.1811	72	2.8346	19	0.7480	...	...	1.1	0.043	36.5	1.437	43.0	1.693	65.5	2.579
MS12	31.750	1.2500	79.247	3.1239	22.225	0.8740	...	...	1.10	0.043	44.0	1.732	...	...	78.0	3.071

Basic Bearing No.	Nominal Bearing Dimensions								Preferred Shoulder Diameters
	d		D		B		C		r (min)		da (min)		da (max)		Da (max)
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
88507	35	1.3779	72	2.8346	25	0.9843	17	0.6693	1.10	0.043	41.0	1.614	45.0	1.772	65.5	2.579
88508	40	1.5748	80	3.1496	27	1.0630	21	0.8268	1.50	0.059	46.0	1.811	51.0	2.008	73.5	2.894
88509	45	1.7717	85	3.3464	27	1.0630	21	0.8268	2.00	0.079	51.0	2.008	55.5	2.185	78.5	3.091
88509A	45	1.7717	85	3.3464	23	0.9055	19	0.7480	2.00	0.079	51.0	2.008	55.5	2.185	78.5	3.091
T88509	45	1.7717	85	3.3464	23	0.9055	19	0.7480	1.10	0.043	51.0	2.008	55.5	2.185	78.5	3.091
88510	50	1.9685	90	3.5433	30	1.1811	22	0.6215	1.10	0.043	56.5	2.205	60.0	2.362	83.5	3.287
88511	55	2.1654	100	3.9370	31	1.2205	23	0.9055	2.00	0.079	62.0	2.441	67.0	2.638	92.0	3.622
88512	60	2.3622	110	4.3307	36	1.417	22	0.8660	1.50	0.059	68.0	2.677	75.0	2.953	102.0	4.016
