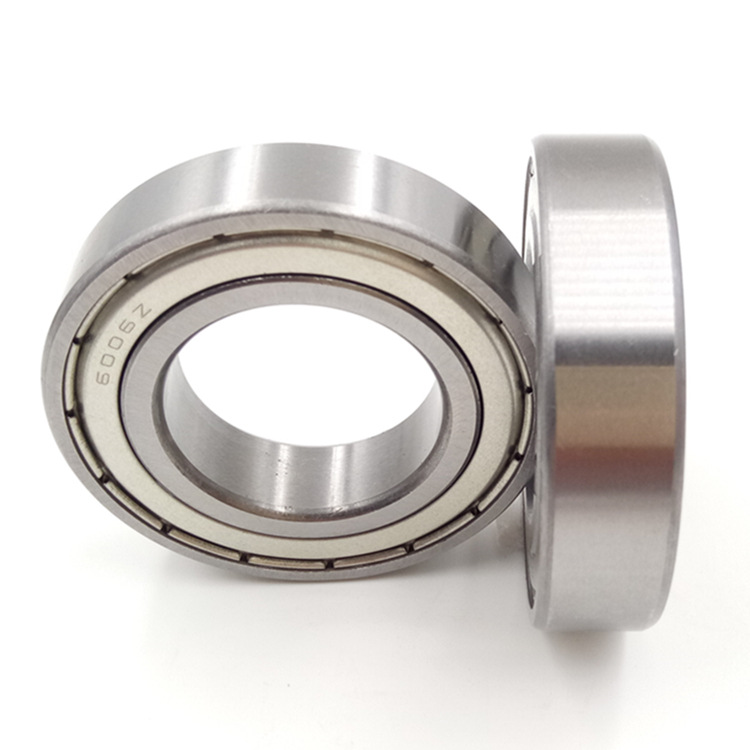

China Ball Bearing 6006ZZ

Product Name:

China Ball Bearing 6006ZZ

Number :

6006 ZZ

Product Description:

FEIYU Bearing is a Chinese professional factory for 6000 series ball bearings,we can produce the ball bearings from the quality rate ABEC1 Z1V1 to ABEC7 Z4V4 with very competitive price.

Bearing No.	Bore		O.D		Width		Load Rating（KN）		Ball Complement		Maxronout Speed		Weight(kg)
	d		D	B	B		Dynamic	Static	No.	Size	Grease	Oil
	mm	in	mm	in	mm	in	Cr	Cor	No.	mm	r/mm	r/mm
605	5	0.1969	14	0.5512	5	0.1969	1.02	0.49	7	2.381	32000	40000	0.0035
606	6	0.2362	17	0.6693	6	0.2362	1.13	0.56	8	2.381	30000	38000	0.006
607	7	0.2756	19	0.748	6	0.2362	2.01	1.05	6	3.5	28000	36000	0.008
608	8	0.315	22	0.8661	7	0.2756	2.53	1.36	7	3.969	26000	34000	0.015
609	9	0.3543	24	0.9449	7	0.2756	2.57	1.36	7	3.969	24000	32000	0.016
6000	10	0.3937	26	1.0236	8	0.315	4.55	1.95	7	4.763	29000	34000	0.019
6001	12	0.4724	28	1.1024	8	0.315	5.1	2.39	8	4.763	26000	30000	0.022
6002	15	0.5906	32	1.2598	9	0.3543	5.6	2.84	9	4.763	22000	26000	0.03
6003	17	0.6693	35	1.378	10	0.3937	6.8	3.35	10	4.763	20000	24000	0.039
6004	20	0.7874	42	1.6535	12	0.4724	9.4	5.05	9	6.35	18000	21000	0.069
6005	25	0.9843	47	1.8504	12	0.4724	10.1	5.85	10	6.35	15000	18000	0.06
6006	30	1.1811	55	2.1645	13	0.5118	13.2	8.3	11	7.144	13000	15000	0.12
6007	35	1.3779	62	2.4409	14	0.5512	16	10.3	11	7.938	12000	14000	0.16
6008	40	1.5748	68	2.6772	15	0.5906	16.8	11.5	12	7.938	10000	12000	0.19
6009	45	1.7716	75	2.9528	16	0.6299	21	15.1	12	8.731	9200	11000	0.25
6010	50	1.965	80	3.1496	16	0.6299	21.8	16.6	13	8.731	8400	9800	0.26
