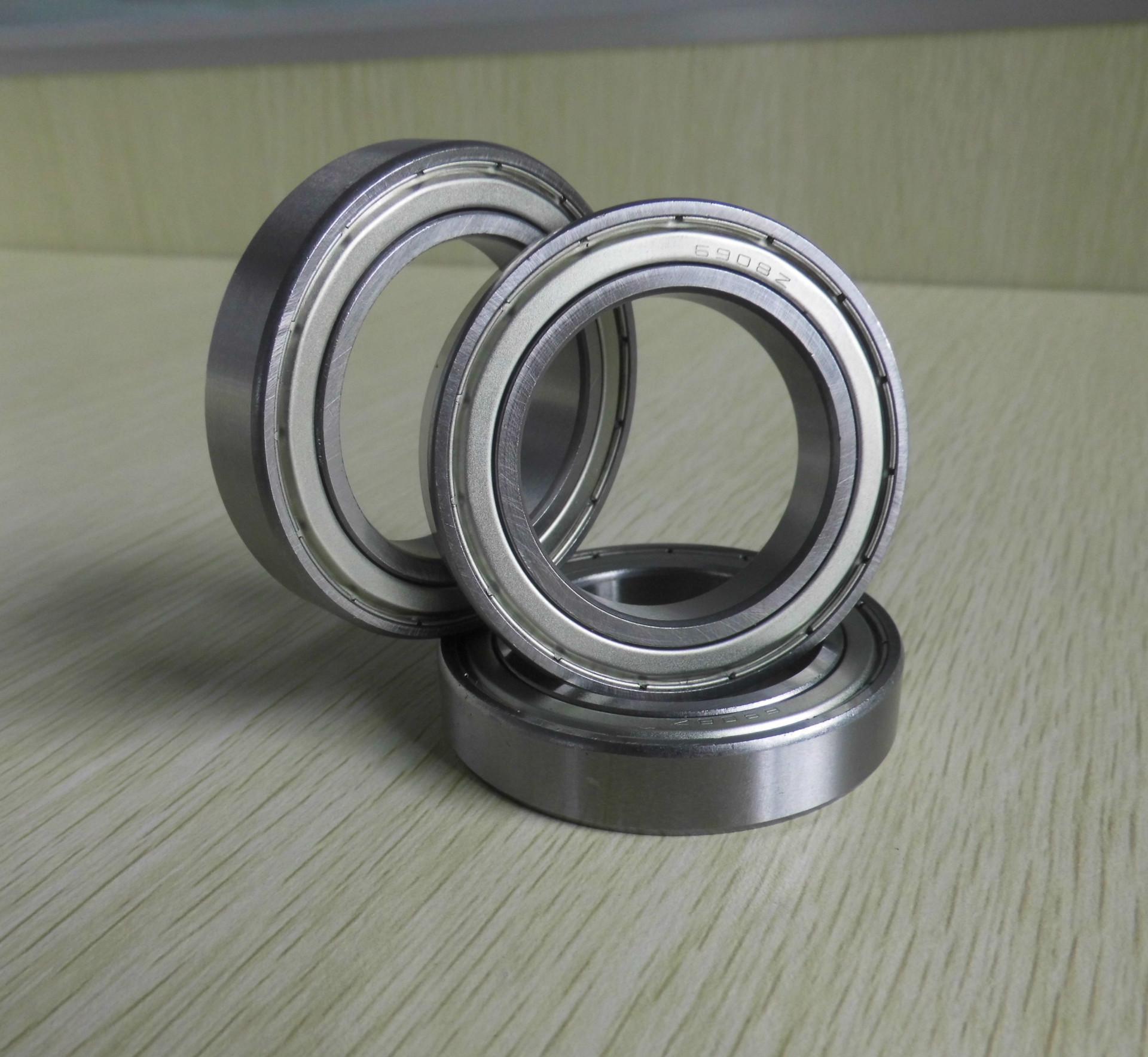

China Ball Bearing 6908ZZ

Product Name:

China Ball Bearing 6908ZZ

Number :

6908ZZ

Product Description:

FEIYU BEARING is a professional China ball bearing 6908ZZ factory,with high quality rate and competitive price!

Basic Bearing No.	Nominal Bearing Dimensions						Preferred Shoulder Diameters
	d		D		B,C		r (min)		da (min)		da (max)		Da (max)
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
693	3	0.1181	8	0.3150	3	0.1181	0.15	0.006	4.3	0.169	4.3	0.169	7.3	0.287
W693	3	0.1181	8	0.3150	4	0.1575	0.15	0.006	4.2	0.165	4.2	0.165	6.8	0.268
694	4	0.1575	11	0.4331	4	0.1575	0.20	0.008	5.2	0.205	5.2	0.205	9.8	0.386
695	5	0.1969	13	0.5118	4	0.1575	0.20	0.008	6.6	0.260	6.6	0.260	11.4	0.449
696	6	0.2362	15	0.5906	5	0.1969	0.30	0.012	7.6	0.299	7.6	0.299	13.4	0.528
697	7	0.2756	17	0.6693	5	0.1969	0.30	0.012	9.0	0.354	9.0	0.354	15.0	0.591
698	8	0.3150	19	0.7480	6	0.2362	0.30	0.012	10.0	0.394	10.0	0.394	16.5	0.650
699	9	0.3543	20	0.7874	6	0.2362	0.30	0.012	11.0	0.433	11.6	0.457	18.0	0.709
6900	10	0.3937	22	0.8661	6	0.2362	0.30	0.012	12.0	0.472	13.0	0.512	20.0	0.787
6901	12	0.4724	24	0.9449	6	0.2362	0.30	0.012	14.0	0.551	15.0	0.591	22.0	0.866
6902	15	0.5906	28	1.1024	7	0.2756	0.30	0.012	17.0	0.669	17.5	0.689	26.0	1.024
6903	17	0.6693	30	1.1811	7	0.2756	0.30	0.012	19.0	0.748	20.0	0.787	28.0	1.102
6904	20	0.7874	37	1.4567	9	0.3543	0.30	0.012	22.0	0.866	24.0	0.945	35.0	1.378
6905	25	0.9843	42	1.6535	9	0.3543	0.30	0.012	27.0	1.063	29.0	1.142	40.0	1.575
6906	30	1.1811	47	1.8504	9	0.3543	0.30	0.012	32.0	1.260	34.0	1.339	45.0	1.772
6907	35	1.3780	55	2.1654	10	0.3937	0.30	0.012	39.0	1.535	40.0	1.575	51.0	2.008
6908	40	1.5748	62	2.4409	12	0.4724	0.30	0.012	44.0	1.732	46.0	1.811	58.0	2.283
6909	45	1.7717	68	2.6772	12	0.4724	0.30	0.012	49.0	1.929	51.0	2.008	64.0	2.520
6910	50	1.9685	72	2.8346	12	0.4724	0.30	0.012	54.0	2.126	55.5	2.185	68.0	2.677
