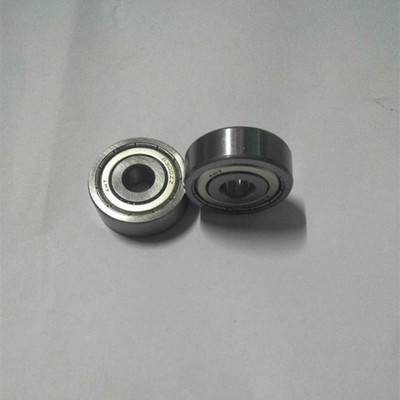

China Inch Ball Bearing R13ZZ

Product Name:

China Inch Ball Bearing R13ZZ

Number :

R13ZZ

Product Description:

Feiyu Bearing is a chinese professional inch ball bearing R13ZZ factory with guranteed quality rate and very comeptitive price!

Code						Diameter		OD		Width(open)		Width(closed)		Assembly chamfer		Base-load		Weight(kg)
Code						d		D		B（OPEN)		B（CLOSED)		r （min)		Dynamic load	Static load	Open	Closed
Open	Dust-proof	Non-contact sealed	Contact sealed	A groove	With snap ring	in	mm	in	mm	in	mm	in	mm	in	mm	Cr（N）	Cr（N）	OPEN	CLOSED
R2	ZZ	2RZ	2RS			1/8	3.175	3/8	9.52	5/32	3.969	5/32	3.969	0.012	0.305	640	222	0.0014	0.0013
R2A	ZZ	2RZ	2RS			1/8	3.175	1/2	12.7	11/64	4.366	11/64	4.366	0.012	0.305	1147	396	0.0032	0.0032
R3	ZZ	2RZ	2RS			3/16	4.763	1/2	12.7	5/32	3.969	0.196	4.978	0.012	0.305	1311	489	0.0023	0.0027
R3A	ZZ	2RZ	2RS			3/16	4.763	1/2	12.7	0.196	4.978	0.196	4.978	0.012	0.305	1311	489	0.0027	0.0027
R4	ZZ	2RZ	2RS			1/4	6.35	5/8	15.875	0.196	4.978	9/32	4.978	0.012	0.305	1489	618	0.0045	0.0045
R4A	ZZ	2RZ	2RS			1/4	6.35	3/4	19.05	7/32	5.556	9/32	7.144	0.016	0.406	2334	884	0.0077	0.0092
R6	ZZ	2RZ	2RS			3/8	9.525	7/8	22.225	7/32	5.556	5/16	7.144	0.016	0.406	3379	1429	0.0109	0.0118
R8	ZZ	2RZ	2RS			1/2	12.7	1-1/8	28.575	1/4	6.35	11/32	7.938	0.016	0.406	3911	2244	0.0177	0.021
R10	ZZ	2RZ	2RS	N	NR	5/8	15.875	1-3/8	34.925	9/32	7.144	7/16	8.731	0.031	0.787	4605	2774	0.0306	0.0367
R12	ZZ	2RZ	2RS	N	NR	3/4	19.05	1-5/8	41.275	5/16	7.938	7/16	11.113	0.031	0.787	7246	4445	0.0472	0.063
R13	ZZ	2RZ	2RS	N	NR	3/4	19.05	1-3/4	44.45	3/8	9.525	1/2	11.113	0.031	0.787	7490	4785	0.0682	0.092
R14	ZZ	2RZ	2RS	N	NR	7/8	22.225	1-7/8	47.625	3/8	9.525	1/2	12.7	0.031	0.787	7735	4939	0.0712	0.097
R16	ZZ	2RZ	2RS	N	NR	1	25.4	2	50.8	3/8	9.525	1/2	12.7	0.031	0.787	8224	5432	0.0848	0.107
R18	ZZ	2RZ	2RS	N	NR	1-1/8	28.375	2-1/8	53.975	3/8	9.525	1/2	12.7	0.031	0.787	9557	6255	0.0898	0.122
R20	ZZ	2RZ	2RS	N	NR	1-1/4	31.75	2-1/4	57.15	3/8	9.525	1/2	12.7	0.031	0.787	10758	7513	0.0948	0.125
R22	ZZ	2RZ	2RS	N	NR	1-3/8	34.925	2-1/2	76.2	7/16	11.113	9/16	14.288	0.031	0.787	12251	8490	0.1052	0.1388
R24	ZZ	2RZ	2RS	N	NR	1-1/2	38.1	2-5/8	66.675	7/16	11.113	9/16	14.288	0.031	0.787	12918	9264	0.1402	0.1848

Code						Diameter		OD		Width(open)		Width(closed)		Base-load		Weight
Code						d		D		B（OPEN)		r （min)		Dynamic load	Static load	(kg)
Open	Dust-proof	Non-contact sealed	Contact sealed	A groove	With snap ring	in	mm	in	mm	in	mm	in	mm	Cr（N）	Cr（N）
1605	ZZ	2RZ	2RS	N	NR	5/16	7.938	29/32	23.019	5/16	7.938	0.012	0.305	3300	1410	.018
1606	ZZ	2RZ	2RS	N	NR	3/8	9.525	29/32	23.019	5/16	7.938	0.012	0.305	3300	1410	.016
1607	ZZ	2RZ	2RS	N	NR	7/16	11.113	29/32	23.019	5/16	7.938	0.016	0.406	3560	1950	.016
1614	ZZ	2RZ	2RS	N	NR	3/8	9.525	1-1/8	28.575	3/8	9.525	0.025	0.635	3920	2250	.035
1615	ZZ	2RZ	2RS	N	NR	7/16	11.113	1-1/8	28.575	3/8	9.525	0.025	0.635	3920	2250	.034
1616	ZZ	2RZ	2RS	N	NR	1/2	12.7	1-1/8	28.575	3/8	9.525	0.025	0.635	3920	2250	.03
1620	ZZ	2RZ	2RS	N	NR	7/16	11.113	1-3/8	34.925	7/16	11.113	0.025	0.635	5900	3500	.05
1621	ZZ	2RZ	2RS	N	NR	1/2	12.7	1-3/8	34.925	7/16	11.113	0.025	0.635	5900	3500	.048
1622	ZZ	2RZ	2RS	N	NR	9/16	14.288	1-3/8	34.925	7/16	11.113	0.025	0.635	5900	3500	.046
1623	ZZ	2RZ	2RS	N	NR	5/8	15.875	1-3/8	34.925	7/16	11.113	0.025	0.635	5900	3500	.04
1628	ZZ	2RZ	2RS	N	NR	5/8	15.875	1-5/8	41.275	1/2	12.7	0.025	0.635	7250	4450	.072
1630	ZZ	2RZ	2RS	N	NR	3/4	19.05	1-5/8	41.275	1/2	12.7	0.025	0.635	7250	4450	.065
1633	ZZ	2RZ	2RS	N	NR	5/8	15.875	1-3/4	44.45	1/2	12.7	0.025	0.635	7250	4450	.092
1635	ZZ	2RZ	2RS	N	NR	3/4	19.05	1-3/4	44.45	1/2	12.7	0.035	0.889	7250	4450	.085
1638	ZZ	2RZ	2RS	N	NR	3/4	19.05	2	50.8	9/16	14.288	0.035	0.889	10800	6950	.12
1640	ZZ	2RZ	2RS	N	NR	7/8	22.225	2	50.8	9/16	14.288	0.035	0.889	10800	6950	.112
1641	ZZ	2RZ	2RS	N	NR	1	25.4	2	50.8	9/16	14.288	0.035	0.889	10800	6950	.1
1652	ZZ	2RZ	2RS	N	NR	1-1/8	28.575	2-1/2	63.5	5/8	15.875	0.035	0.889	12800	8400	.21
1654	ZZ	2RZ	2RS	N	NR	1-1/4	31.75	2-1/2	63.5	5/8	15.875	0.035	0.889	12800	8400
