Ningbo Feiyu Bearing Co.,Ltd

China High Quality Ball Bearing Manufacturer

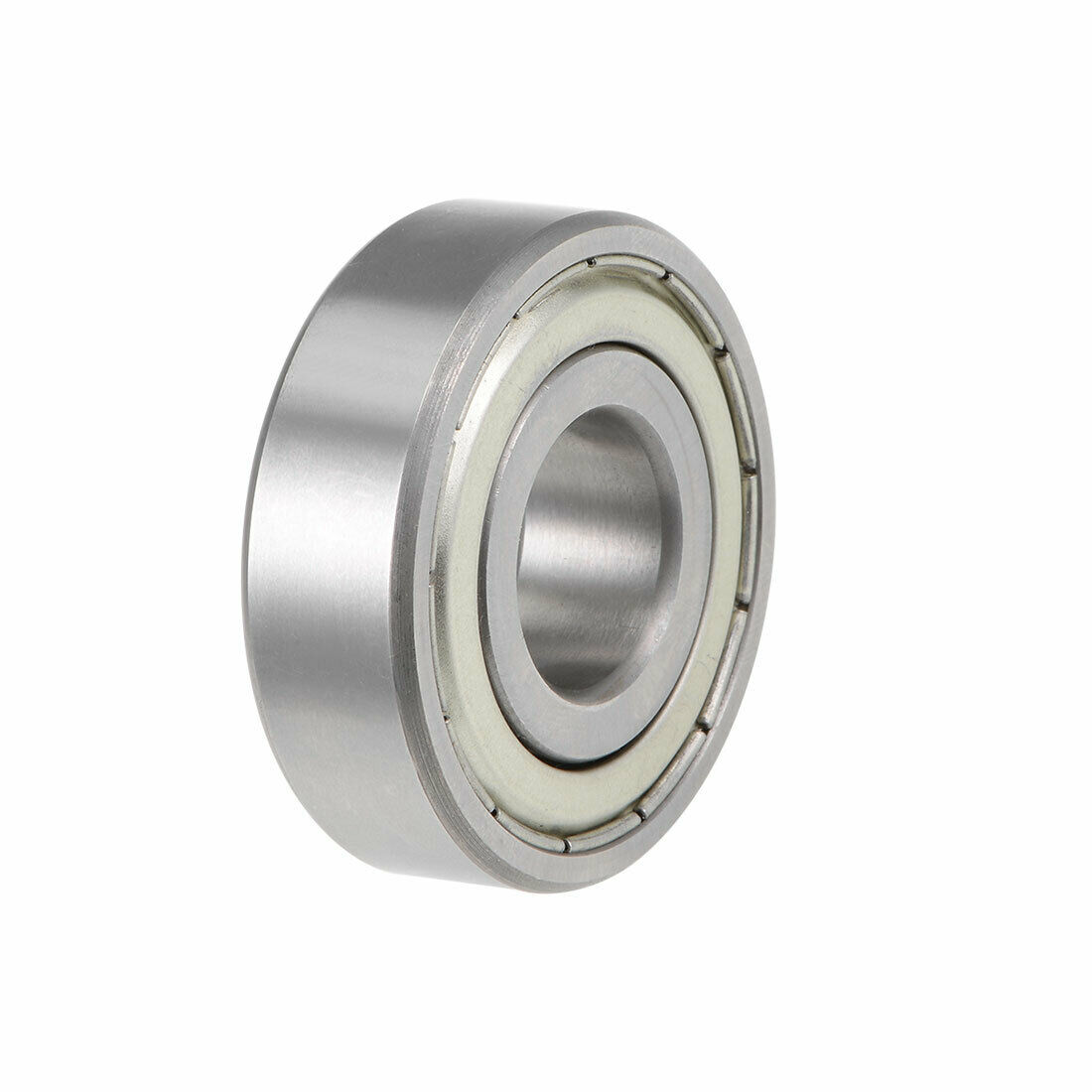

China Inch size Ball Bearing RLS6ZZ

Product Name:

China Inch size Ball Bearing RLS6ZZ

Number :

RLS6ZZ/OPEN/2RS

Product Description:

For RLS6ZZ,Advantages of our company:

1. We are manufacturer with more than 25 years industry experience,offer you the most competitive price and most stable quality.
2. Perfect group of technical engineers offer you the best support.
3. Well-trained group of Int

ernational sales provide you the best service.
4. Smooth, silent and low vibration assure durability with long life.
5. Extensive range of bearing types, price, quality.
6. Our own brand “BLJ”,OEM customization, customers' logo also available
7. Good ability of cost control brings you reasonable price, long-term partner of forwarder brings you low freight
8. Special discount and protection of sales area provide to our distributors

Code						Diameter		OD		Width(open)		Width(closed)		Assembly chamfer		Base-load		Weight(kg)
Code						d		D		B（OPEN)		B（CLOSED)		r （min)		Dynamic load	Static load	Open	Closed
Open	Dust-proof	Non-contact sealed	Contact sealed	A groove	With snap ring	in	mm	in	mm	in	mm	in	mm	in	mm	Cr（N）	Cr（N）	OPEN	CLOSED
R2	ZZ	2RZ	2RS			1/8	3.175	3/8	9.52	5/32	3.969	5/32	3.969	0.012	0.305	640	222	0.0014	0.0013
R2A	ZZ	2RZ	2RS			1/8	3.175	1/2	12.7	11/64	4.366	11/64	4.366	0.012	0.305	1147	396	0.0032	0.0032
R3	ZZ	2RZ	2RS			3/16	4.763	1/2	12.7	5/32	3.969	0.196	4.978	0.012	0.305	1311	489	0.0023	0.0027
R3A	ZZ	2RZ	2RS			3/16	4.763	1/2	12.7	0.196	4.978	0.196	4.978	0.012	0.305	1311	489	0.0027	0.0027
R4	ZZ	2RZ	2RS			1/4	6.35	5/8	15.875	0.196	4.978	9/32	4.978	0.012	0.305	1489	618	0.0045	0.0045
R4A	ZZ	2RZ	2RS			1/4	6.35	3/4	19.05	7/32	5.556	9/32	7.144	0.016	0.406	2334	884	0.0077	0.0092
R6	ZZ	2RZ	2RS			3/8	9.525	7/8	22.225	7/32	5.556	5/16	7.144	0.016	0.406	3379	1429	0.0109	0.0118
R8	ZZ	2RZ	2RS			1/2	12.7	1-1/8	28.575	1/4	6.35	11/32	7.938	0.016	0.406	3911	2244	0.0177	0.021
R10	ZZ	2RZ	2RS	N	NR	5/8	15.875	1-3/8	34.925	9/32	7.144	7/16	8.731	0.031	0.787	4605	2774	0.0306	0.0367
R12	ZZ	2RZ	2RS	N	NR	3/4	19.05	1-5/8	41.275	5/16	7.938	7/16	11.113	0.031	0.787	7246	4445	0.0472	0.063
R13	ZZ	2RZ	2RS	N	NR	3/4	19.05	1-3/4	44.45	3/8	9.525	1/2	11.113	0.031	0.787	7490	4785	0.0682	0.092
R14	ZZ	2RZ	2RS	N	NR	7/8	22.225	1-7/8	47.625	3/8	9.525	1/2	12.7	0.031	0.787	7735	4939	0.0712	0.097
R16	ZZ	2RZ	2RS	N	NR	1	25.4	2	50.8	3/8	9.525	1/2	12.7	0.031	0.787	8224	5432	0.0848	0.107
R18	ZZ	2RZ	2RS	N	NR	1-1/8	28.375	2-1/8	53.975	3/8	9.525	1/2	12.7	0.031	0.787	9557	6255	0.0898	0.122
R20	ZZ	2RZ	2RS	N	NR	1-1/4	31.75	2-1/4	57.15	3/8	9.525	1/2	12.7	0.031	0.787	10758	7513	0.0948	0.125
R22	ZZ	2RZ	2RS	N	NR	1-3/8	34.925	2-1/2	76.2	7/16	11.113	9/16	14.288	0.031	0.787	12251	8490	0.1052	0.1388
R24	ZZ	2RZ	2RS	N	NR	1-1/2	38.1	2-5/8	66.675	7/16	11.113	9/16	14.288	0.031	0.787	12918	9264	0.1402	0.1848

Code						Diameter		OD		Width(open)		Width(closed)		Base-load		Weight
Code						d		D		B（OPEN)		r （min)		Dynamic load	Static load	(kg)
Open	Dust-proof	Non-contact sealed	Contact sealed	A groove	With snap ring	in	mm	in	mm	in	mm	in	mm	Cr（N）	Cr（N）
1605	ZZ	2RZ	2RS	N	NR	5/16	7.938	29/32	23.019	5/16	7.938	0.012	0.305	3300	1410	.018
1606	ZZ	2RZ	2RS	N	NR	3/8	9.525	29/32	23.019	5/16	7.938	0.012	0.305	3300	1410	.016
1607	ZZ	2RZ	2RS	N	NR	7/16	11.113	29/32	23.019	5/16	7.938	0.016	0.406	3560	1950	.016
1614	ZZ	2RZ	2RS	N	NR	3/8	9.525	1-1/8	28.575	3/8	9.525	0.025	0.635	3920	2250	.035
1615	ZZ	2RZ	2RS	N	NR	7/16	11.113	1-1/8	28.575	3/8	9.525	0.025	0.635	3920	2250	.034
1616	ZZ	2RZ	2RS	N	NR	1/2	12.7	1-1/8	28.575	3/8	9.525	0.025	0.635	3920	2250	.03
1620	ZZ	2RZ	2RS	N	NR	7/16	11.113	1-3/8	34.925	7/16	11.113	0.025	0.635	5900	3500	.05
1621	ZZ	2RZ	2RS	N	NR	1/2	12.7	1-3/8	34.925	7/16	11.113	0.025	0.635	5900	3500	.048
1622	ZZ	2RZ	2RS	N	NR	9/16	14.288	1-3/8	34.925	7/16	11.113	0.025	0.635	5900	3500	.046
1623	ZZ	2RZ	2RS	N	NR	5/8	15.875	1-3/8	34.925	7/16	11.113	0.025	0.635	5900	3500	.04
1628	ZZ	2RZ	2RS	N	NR	5/8	15.875	1-5/8	41.275	1/2	12.7	0.025	0.635	7250	4450	.072
1630	ZZ	2RZ	2RS	N	NR	3/4	19.05	1-5/8	41.275	1/2	12.7	0.025	0.635	7250	4450	.065
1633	ZZ	2RZ	2RS	N	NR	5/8	15.875	1-3/4	44.45	1/2	12.7	0.025	0.635	7250	4450	.092
1635	ZZ	2RZ	2RS	N	NR	3/4	19.05	1-3/4	44.45	1/2	12.7	0.035	0.889	7250	4450	.085
1638	ZZ	2RZ	2RS	N	NR	3/4	19.05	2	50.8	9/16	14.288	0.035	0.889	10800	6950	.12
1640	ZZ	2RZ	2RS	N	NR	7/8	22.225	2	50.8	9/16	14.288	0.035	0.889	10800	6950	.112
1641	ZZ	2RZ	2RS	N	NR	1	25.4	2	50.8	9/16	14.288	0.035	0.889	10800	6950	.1
1652	ZZ	2RZ	2RS	N	NR	1-1/8	28.575	2-1/2	63.5	5/8	15.875	0.035	0.889	12800	8400	.21
1654	ZZ	2RZ	2RS	N	NR	1-1/4	31.75	2-1/2	63.5	5/8	15.875	0.035	0.889	12800	8400
